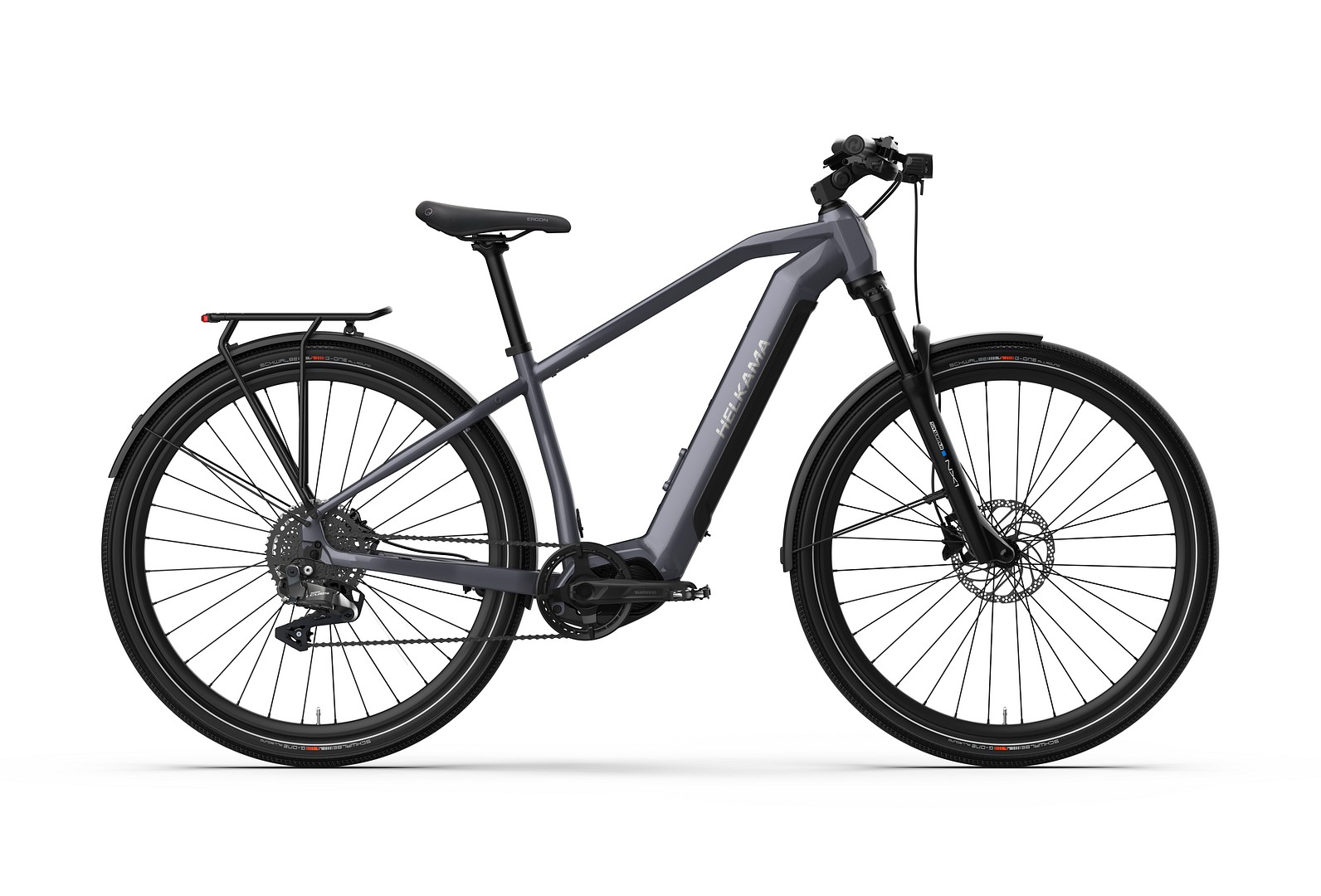

Helkama SX 10sp Autoshift 29”
4399,00 €
Motor
Shimano EP6 85Nm 250W 25km/h
The EP6 drive unit offers EP8-level e-bike performance at a lower price and still offers 85 Nm of torque.
Battery
Shimano BT-EN806 630Wh
A high-capacity frame-integrated battery, ideal for those who want to ride longer between charges. Compact design and low centre of gravity for a more natural riding experience.
Display
Shimano SC-EN610
Large 2.8″ LCD colour display for city and trekking bikes. The clear display shows you the most important information about your bike at a glance.
AVS
AtranVeloSystem
AtranVeloSystem or AVS is a patented system for securely attaching accessories to your bike. It contains a wide range of high-quality bags and baskets for different situations. All accessories are modular and compatible with both front and rear racks, so you can install them in the way that suits you bike.
Helkama SX 10sp Autoshift 29”
4399,00 €
Helkama SX Autoshift is a sporty electric hybrid bike for longer commutes and leisure bike rides in all surfaces and weathers. The bike has a battery integrated in the frame and automatic gears.
Description
Helkama SX product family
The versatile and sporty hybrid electric bikes in the SX product family are suitable for commuting and cycling trips. The SX bikes have wider tyres that are not afraid of gravel or snow – making the SX suitable for varying urban terrain and weather conditions. The SX bikes are available in low and high frame versions and feature an active but comfortable riding position. The battery is elegantly integrated into the bike frame.
SX with automatic gears
The Shimano Autoshift technology on the sleek SX bike ensures that you can concentrate fully on riding without minding the gears – the system takes care of gear changes automatically. You’ll have the right gear when starting off, accelerating, climbing uphill or just cruising. In addition, the bicycle features FOX AWL 100 mm front suspension to guarantee excellent riding comfort on pavement and gravel roads alike.
Cutting-edge technology
Equipped with Shimano’s 2nd Gen EP6 pedal assist system, the hybrid bicycle offers an astonishing 85 Nm of torque to pedal even steep uphill with ease. The battery with increased 630 Wh capacity is elegantly integrated into the frame and is sufficient for longer cycling trips.
Perfected accessories
The SX bike comes with a comprehensive range of high-quality accessories. The Ergon gel saddle ensures a comfortable ride even on longer trips. Hermmans Nucore Town Wave handlebar grips are made of bio-based material in Finland. The bike also features a sleek yet sturdy Urban Pro pannier rack with the AtranVeloSystem for attaching accessories. This means that you can easily attach the bags and baskets from the product family by simply clicking them into place.
Powerful lights make your journeys safe even during the darker seasons. In addition to the front and rear lights, our hybrid electric bike is equipped with an impressive DRL daytime running light that always lights up when the motor is on.
• Motor: Shimano EP6, 85 Nm
• Battery: Shimano BT-EN806, 630 Wh
• Display: Shimano SC-EN610
• Charger Shimano EC-E6002
Additional information
Product name | Helkama SX 10v Autoshift 29” |
---|---|
Frame | Aluminum |
Frame size | L(19), M(17), XL(21) |
Front fork | Suntour SF23-NX1-32-Boost AIR 100mm |
Transmission | Shimano CUES RD-U6050 GS 10sp Autoshift |
Shifter | Shimano SW-EN600-R electric gear |
Front brakes | Shimano MT410 hydraulic disc brake 180mm |
Rear brakes | Shimano MT410 hydraulic disc brake 180mm |
Brake lever | Shimano MT-401 |
Crank set | Shimano FC-EM600 170mm/CR-ET600 38T |
Chain | Shimano CN-LG500 Linkglide |
Rims | Mach 1 Trucky 30-622 32H |
Saddle | Istuin Ergon ST10 GEL |
Seatpost | 30,9/350mm aluminium |
Handlebar | Ergotec Low Riser Bar 31.8, 720mm |
Stem | Ergotec Sepia XL 100 |
Rear axle measurements | QR 168mm |
Tires | Schwalbe G-One Allround |
Wheel size | 29" |
Tire size ETRTO | 57-622 |
Motor brand | Shimano |
Motor model | EP6 |
Motor type | Center |
Motor specifications | 250W – 36V – 85Nm- 25km/h |
Battery model | Shimano BT-EN806 |
Battery Energy (Wh) | 630 |
Battery placement | Integrated |
Battery charging time | 80% 7,5h , 100% 10,2h |
Charger | Shimano EC-E6002 |
Display | Shimano SC-EN610 |
Recommended height | |
Weight (kg) | 26,6 |
Helkama SX 10sp Autoshift 29”: l19
fs ‐ Frame size | 19" |
---|---|
st ‐ Seat tube length | 480 |
tt ‐ Effective top tube length | 628 |
ht ‐ Head tube length | 135 |
hta ‐ Head tube angle | 67,5 |
sta ‐ Seat tube angle | 74,5 |
cs ‐ Chainstay length | 465 |
bd ‐ Bottom bracket drop | 63 |
fo ‐ Fork rake/offset | 528 |
s ‐ Stack | 660 |
r ‐ Reach | 445 |
wb ‐ Wheelbase | 1203 |
Helkama SX 10sp Autoshift 29”: xl21
fs ‐ Frame size | 21" |
---|---|
st ‐ Seat tube length | 530 |
tt ‐ Effective top tube length | 648 |
ht ‐ Head tube length | 145 |
hta ‐ Head tube angle | 67,5 |
sta ‐ Seat tube angle | 74,5 |
cs ‐ Chainstay length | 465 |
bd ‐ Bottom bracket drop | 63 |
fo ‐ Fork rake/offset | 528 |
s ‐ Stack | 670 |
r ‐ Reach | 462 |
wb ‐ Wheelbase | 1224 |
Helkama SX 10sp Autoshift 29”: m17
fs ‐ Frame size | 17" |
---|---|
st ‐ Seat tube length | 430 |
tt ‐ Effective top tube length | 605 |
ht ‐ Head tube length | 125 |
hta ‐ Head tube angle | 67,5 |
sta ‐ Seat tube angle | 74,5 |
cs ‐ Chainstay length | 465 |
bd ‐ Bottom bracket drop | 63 |
fo ‐ Fork rake/offset | 528 |
s ‐ Stack | 651 |
r ‐ Reach | 425 |
wb ‐ Wheelbase | 1179 |
