Helkama FE10 10sp

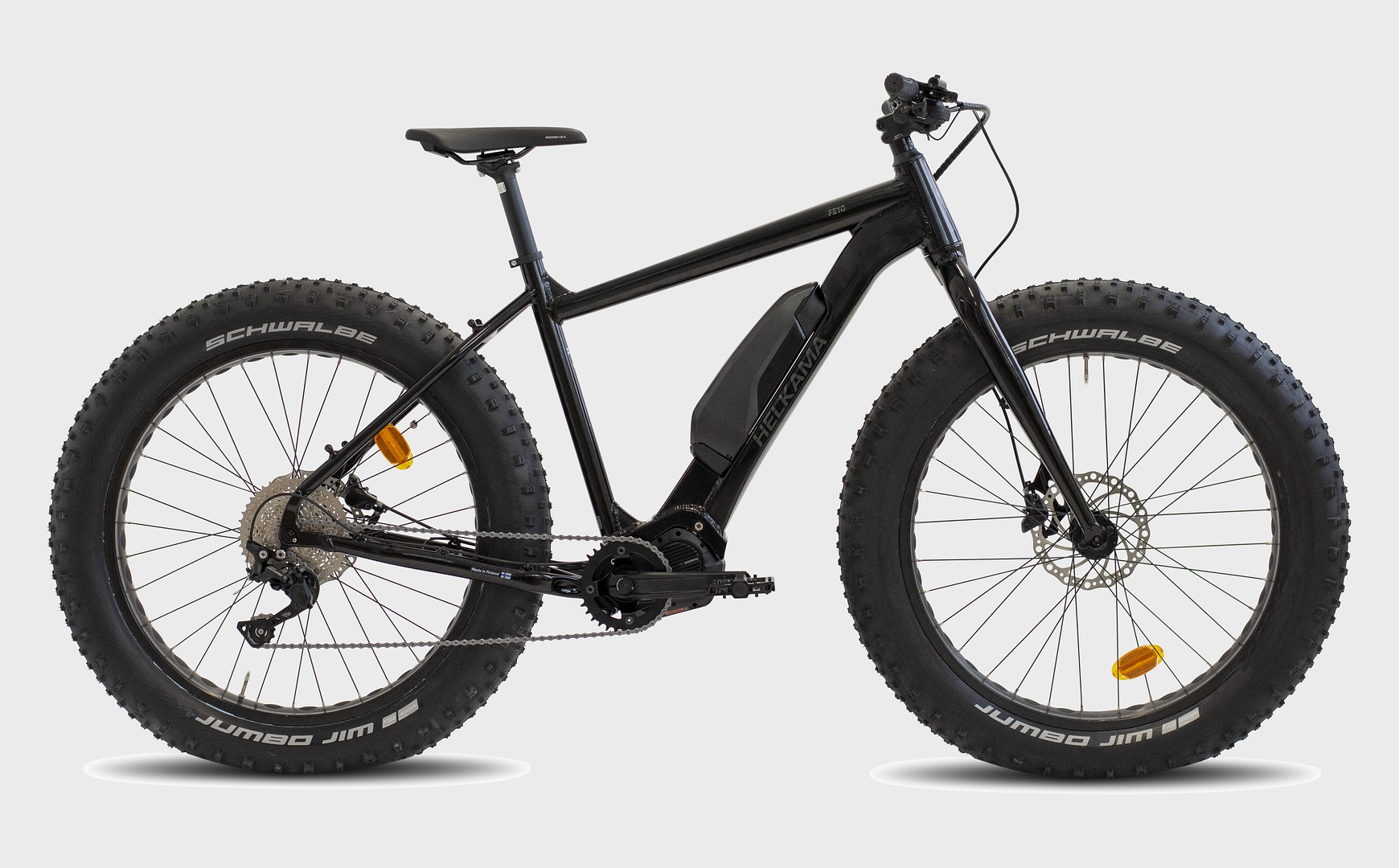

Helkama FE10 is an e-fatbike with a high-torque and extremely efficient Shimano Steps E7000 motor.
2999,00 €
Find closest dealerHelkama FE10 is an e-fatbike with a high-torque and extremely efficient Shimano Steps E7000 motor and semi-integrated battery. The lightweight 2.8-kg motor allows for a feel similar to a conventional mountain bike. The motor is intended for demanding offroad riding and going over roots and rocks on the route, and therefore it is very well suited for a fatbike. The Helkama FE10 fatbike has a ten-speed Shimano Deore gear set and hydraulic Shimano MT200 disc brakes.

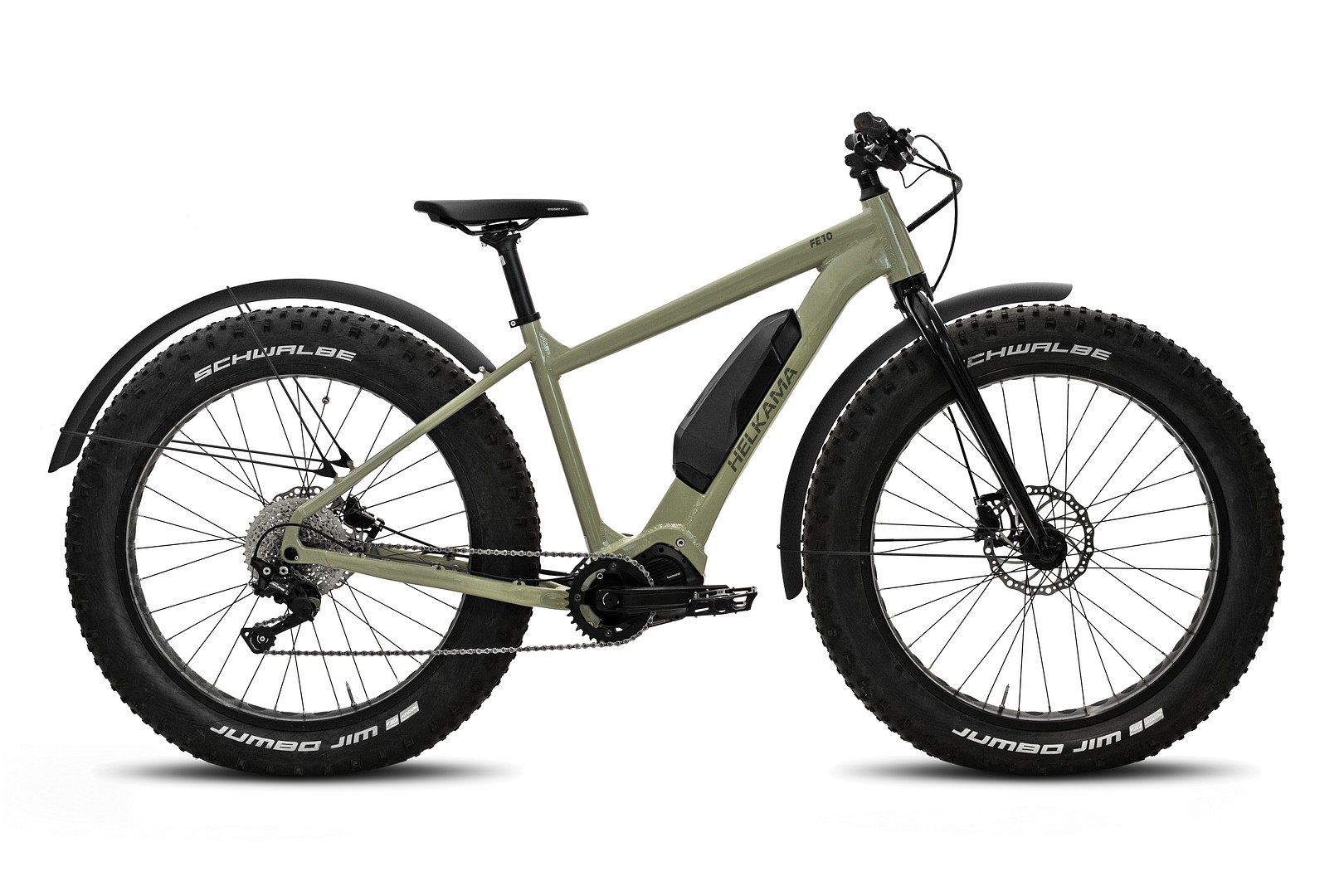

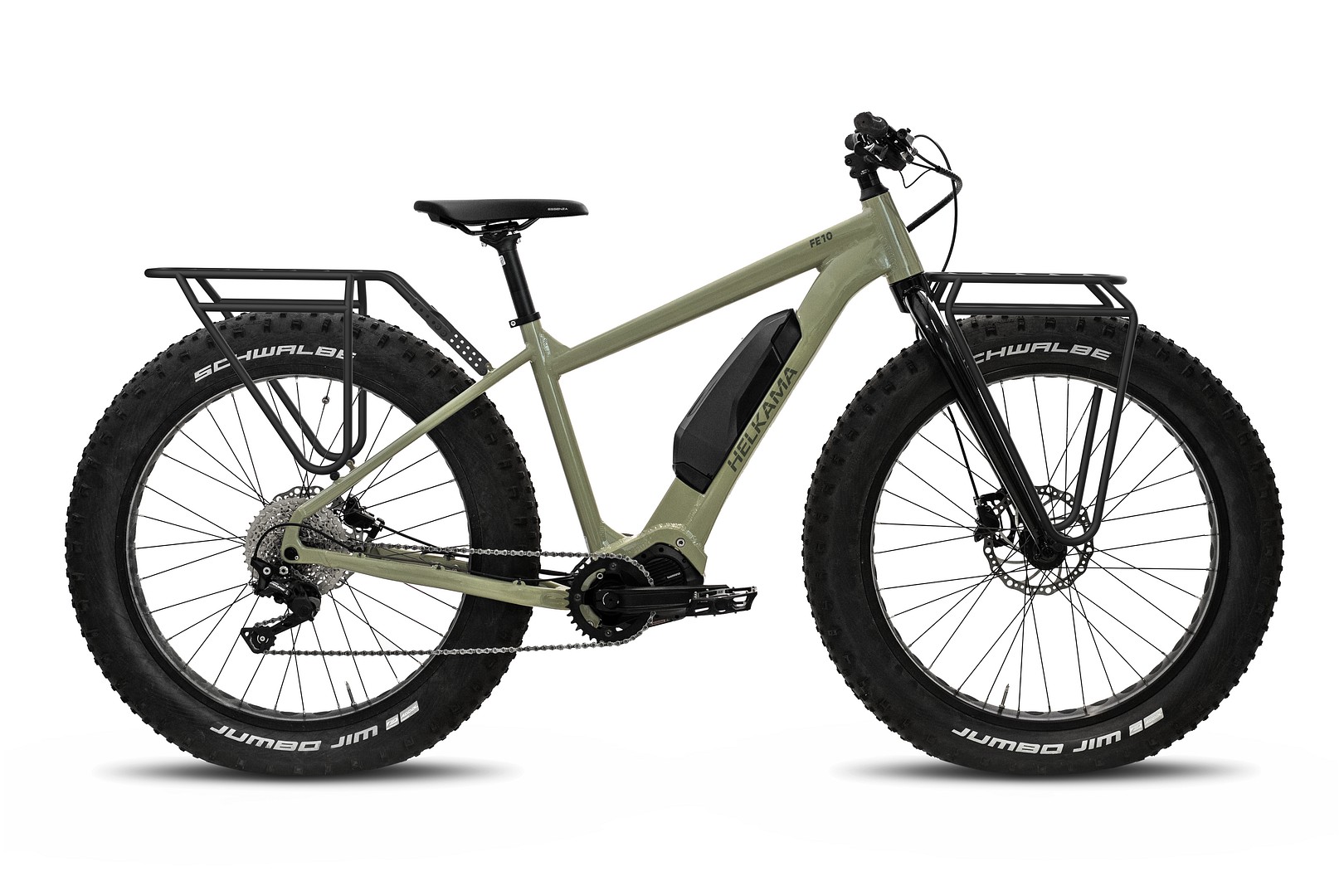

The frame and front fork feature fittings for various racks and bags, so the bicycle is also well suited for touring. These accessories are not included, but they can be purchased separately from your closest Helkama retailer.
MOTOR
Shimano E7000 60Nm 250W 25km/h
The motor allows for a ride similar to a regular mountain bike and because it is small, it can be mounted on a similar frame. Its low profile and durable protective casing are designed for demanding off-road riding.
BATTERY
Shimano BT-E8010 504wh
Extremely durable high-performance, high-capacity lithium-ion battery.
DISPLAY
Shimano SC-E7000
Lightweight low-profile display, suited for off-road use. Includes all the features you’ll ever need. A 1.39” black-and-white LCD screen that attaches to the handlebike
Additional information
| Product name | Helkama FE10 10s |
|---|---|
| Brand | Helkama |
| Frame | Aluminum |
| Frame size | 18", 20" |
| Front fork | Steel |
| Transmission | Shimano Deore M6000 10s |
| Gear amount | 10 |
| Shifter | Shimano SL-M6000 Deore |
| Front brakes | Shimano MT200 hydraulic disc brake 180 mm |
| Rear brakes | Shimano MT200 hydraulic disc brake 180 mm |
| Brake lever | Shimano |
| Crank set | Samox e-Fat 34H, 170 mm |
| Chain | KMC |
| Rims | Weinnman HL801 80-559 |
| Saddle | Selle Royal Essenza Athletic |
| Seatpost | 30,9 x 350 mm |
| Handlebar | Aluminium 35/780 mm |
| Stem | Fixed 35 mm |
| Rear axle measurements | 12x227x1.5mm |
| Tires | Schwalbe Jumbo Jim black |
| Wheel size | 26" |
| Tire size ETRTO | 120-559 |
| Motor brand | Shimano |
| Motor model | Shimano E7000 |
| Motor specifications | 250W – 36V – 60Nm- 25km/h |
| Battery model | Shimano E8010 |
| Battery Energy (Wh) | 504 |
| Battery placement | Frame battery |
| Battery charging time | |
| Charger | Shimano E6002 |
| Display | Shimano E7000 |
| Color | black, green |
| Painoraja (kg) | 145 |
| Recommended height | |
| Weight (kg) | 27 |

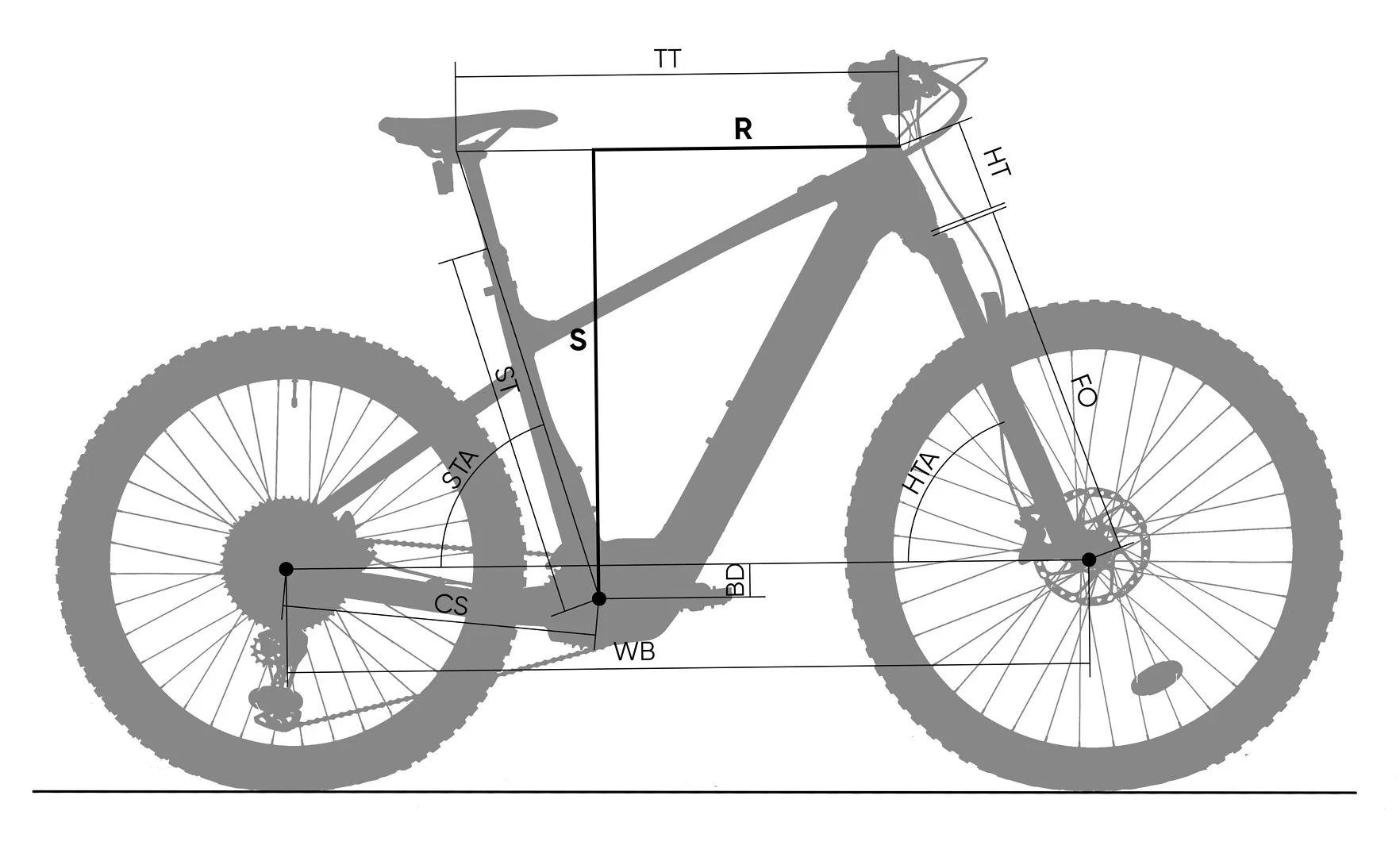

Helkama FE10 10sp: 18
| fs ‐ Frame size | 18" |
|---|---|
| st ‐ Seat tube length | 457 |
| tt ‐ Effective top tube length | 600 |
| ht ‐ Head tube length | 135 |
| hta ‐ Head tube angle | 69 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 495 |
| bd ‐ Bottom bracket drop | 67 |
| fo ‐ Fork rake/offset | 478 |
| s ‐ Stack | 623 |
| r ‐ Reach | 410 |
| wb ‐ Wheelbase | 1169 |
Helkama FE10 10sp: 20
| fs ‐ Frame size | 20" |
|---|---|
| st ‐ Seat tube length | 508 |
| tt ‐ Effective top tube length | 605 |
| ht ‐ Head tube length | 135 |
| hta ‐ Head tube angle | 69 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 495 |
| bd ‐ Bottom bracket drop | 67 |
| fo ‐ Fork rake/offset | 478 |
| s ‐ Stack | 622 |
| r ‐ Reach | 414 |
| wb ‐ Wheelbase | 1172 |
